M5StickC PLUS is powered by-PICO-D4 with Wi-Fi and is an upgrade of the original with a bigger screen .It is a portable, easy-to-use, open source, IoT development board. This tiny device will enable you to realize your ideas, enrich your creativity, and speed up your IoT prototyping. Developing with M5StickC PLUS takes away a lot of the pains from the development process. M5StickC Plus is one of the core devices in M5Stacks product series. The compact body is integrated with rich hardware resources, such as infrared, RTC, Microphone, LED, IMU, Buttons, PMU,etc. Improvements from the regular StickC are a buzzer, bigger screen (1.14-inch, 135 * 240 resolution LCD Screen) and more stable hardware design. This revision increases the display area by 18.7%, and the battery capacity from 95mAh to 120mAh. It also supports the HAT and Unit family of products. Power switch operation:

• Power on :Press power button for 2 seconds
• Power off :Press power button for 6 seconds

Product Features

• ESP32-based support Wi-Fi
• Built-in 6-Axis IMU
• Red LED
• IR transmitter
• Microphone
• RTC
• Buttons, LCD(1.14 inch)
• Built-in Lithium Polymer Battery
• Extendable Socket
• Built-in Passive Buzzer

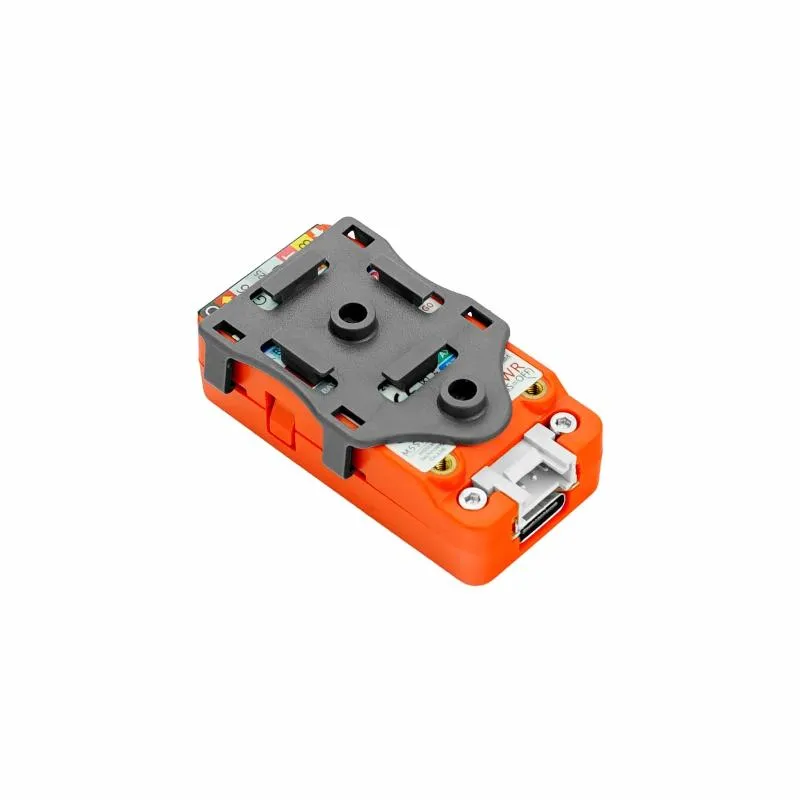

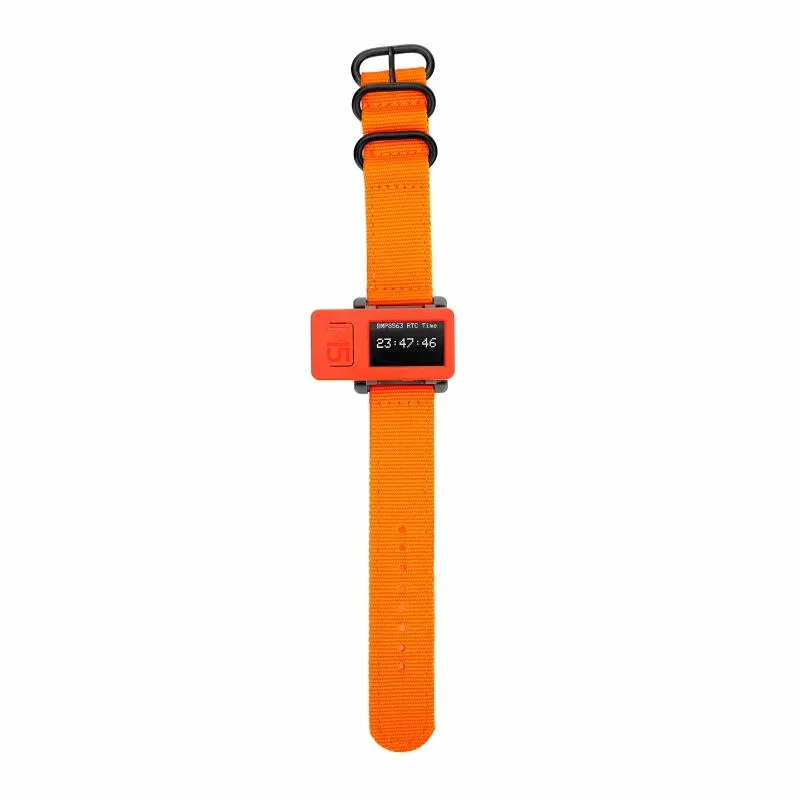

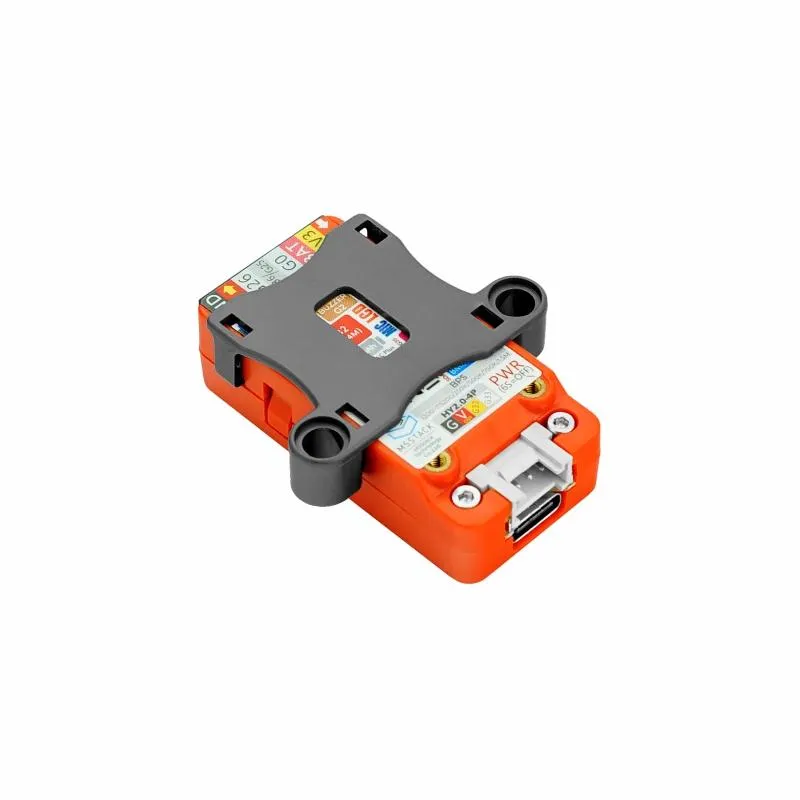

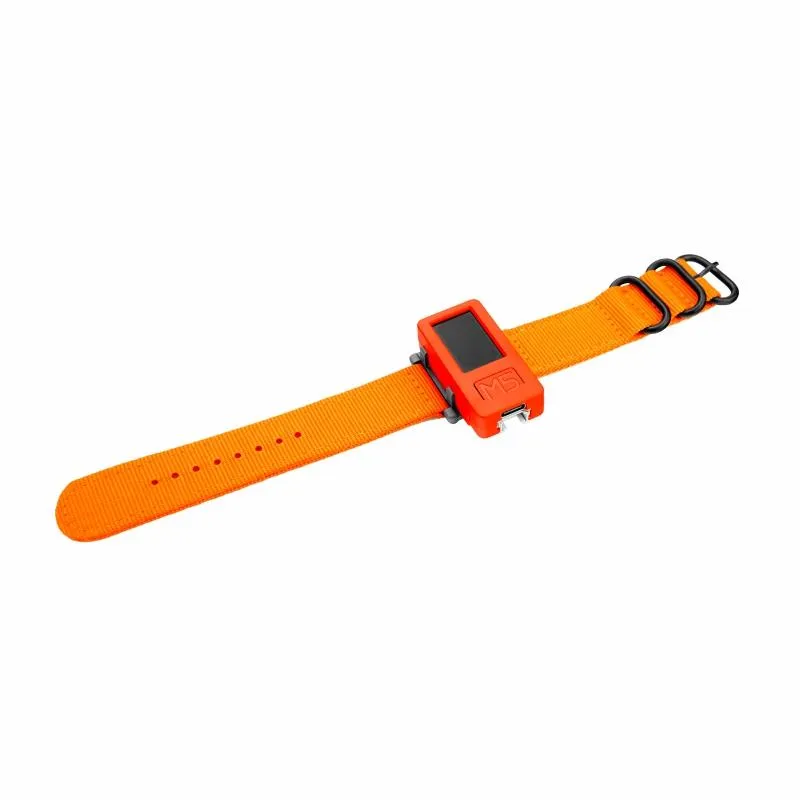

• Wearable & Wall mounted
• Compatible with multi-platform development:

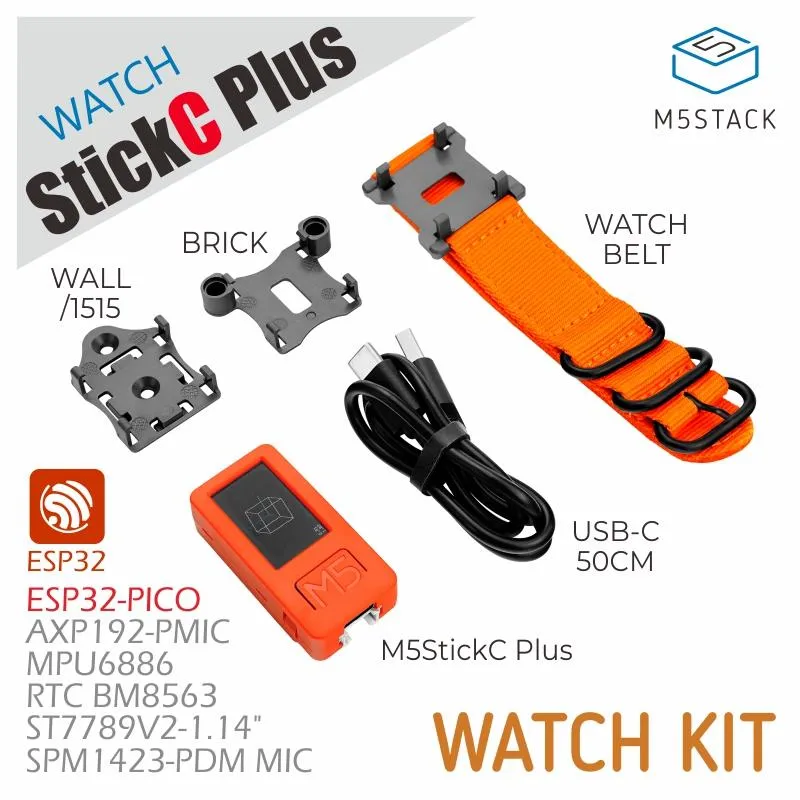

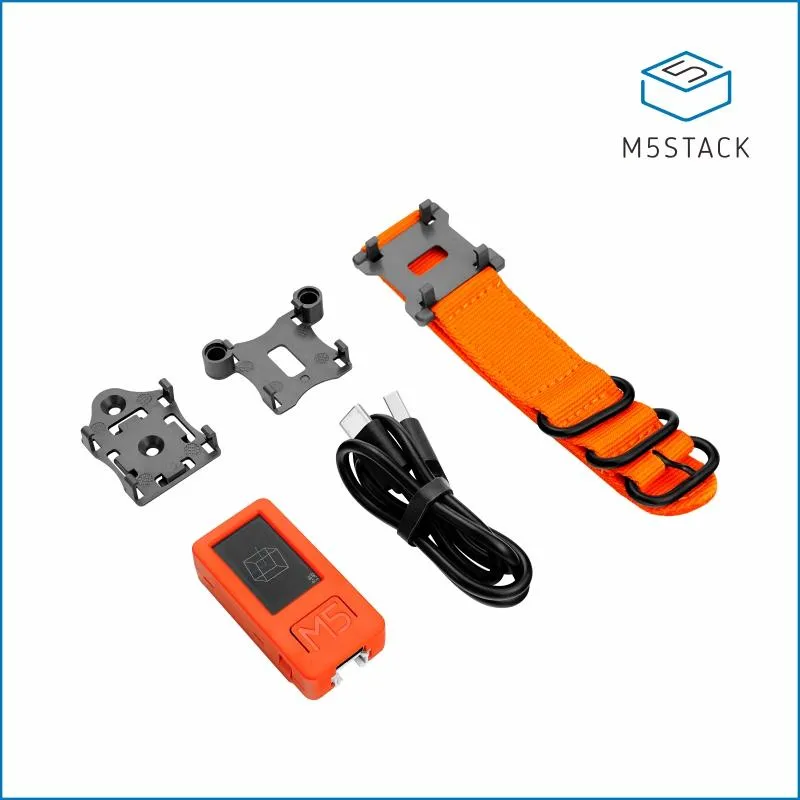

Include

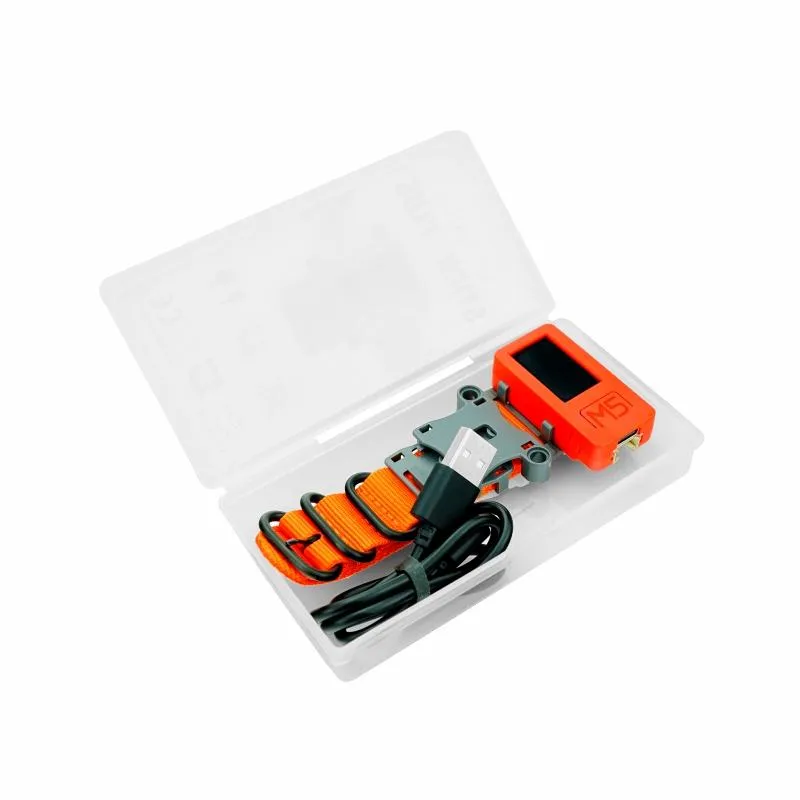

• 1x M5StickC Plus

Applications

• Internet of things terminal controller
• Wearable devices
• Stem education product
• DIY creation

Specification

Resources	Parameter
ESP32	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash Memory	4MB
Power Input	5V @ 500mA
Port	TypeC x 1, GROVE(I2C I/0 UART) x 1
LCD screen	1.14 inch, 135*240 Colorful TFT LCD, ST7789v2
Button	Custom button x 2
LED	RED LED
MEMS	MPU6886
Buzzer	built-in buzzer
IR	Infrared transmission
MIC	SPM1423
RTC	BM8563
PMU	AXP192
Battery	120 mAh @ 3.7V
Antenna	2.4G 3D Antenna
PIN port	G0, G25/G36, G26, G32, G33
Operating Temperature	0°C to 60°C
Net weight	15g
Gross weight	21g
Product Size	48.2*25.5*13.7mm
Package Size	50*25*15mm
Case Material	Plastic ( PC )

USB Driver

class="warn">Connect the device to the PC, open the device manager to install for the device. Take the win10 environment as an example, download the driver file that matches the operating system, unzip it, and install it through the device manager. (Note: In some system environments, the driver needs to be installed twice for the driver to take effect. The unrecognized device name is usually M5Stack or USB Serial. Windows recommends using the driver file to install directly in the device manager (custom Update), the executable file installation method may not work properly).

EasyLoader

class="warn">Description:
Accelerometer, microphone, LED, IR, RTC and other hardware tests. Press A or B to switch test items. Notice:

• Baud rate supported by M5StickC Plus: 1200 ~115200, 250K, 500K, 750K, 1500K
• G36/G25 share the same port, when one of the pins is used, the other pin should be set as a floating input
• For example, to use the G36 pin as the ADC input, Configuration the G25 pin as FLOATING
• The input range of VBUS_VIN and VBUS_USB is limited to 4.8-5.5V, and the internal battery will be charged through AXP192 power management when VBUS is powered.

setup(){   M5.begin();   pinMode(36, INPUT);   gpio_pulldown_dis(GPIO_NUM_25);   gpio_pullup_dis(GPIO_NUM_25);}

PinMap

RED LED & IR Transmitter & BUTTON A & BUTTON B

ESP32	GPIO10	GPIO9	GPIO37	GPIO39	GPIO2
RED LED	LED Pin
IR Transmitter		Transmitter Pin
BUTTON A			Button Pin
BUTTON B				Button Pin
Buzzer					Buzzer Pin

TFT LCD Driver IC:ST7789v2 Resolution:135 * 240

ESP32	GPIO15	GPIO13	GPIO23	GPIO18	GPIO5
TFT LCD	TFT_MOSI	TFT_CLK	TFT_DC	TFT_RST	TFT_CS

GROVE PORT

ESP32	GPIO33	GPIO32	5V	GND
GROVE port	SCL	SDA	5V	GND

MIC (SPM1423)

ESP32	GPIO0	GPIO34
MICROPHONE	CLK	DATA

6-Axis posture sensor (MPU6886) & power management IC (AXP192)

ESP32	GPIO22	GPIO21
6-Axis IMU sensor	SCL	SDA
Power management IC	SCL	SDA

AXP192

Microphone	RTC	TFT backlight	TFT IC	ESP32/3.3V MPU6886	5V GROVE
LDOio0	LDO1	LDO2	LDO3	DC-DC1	IPSOUT

Related Link

• datasheet
• API
• Arduino Library

Learn

Example

Arduino

Version Change

Release Date	Product Change	Note:
/	Initial public release<	/
2021.12	Added hibernation and wake-up functions, and changed version to v1.1	/
